JDS6600

a few observations at 5MHz

Here are a few measurements done with a square wave from the JDS6600 at 5MHz into a 50 ohm load.

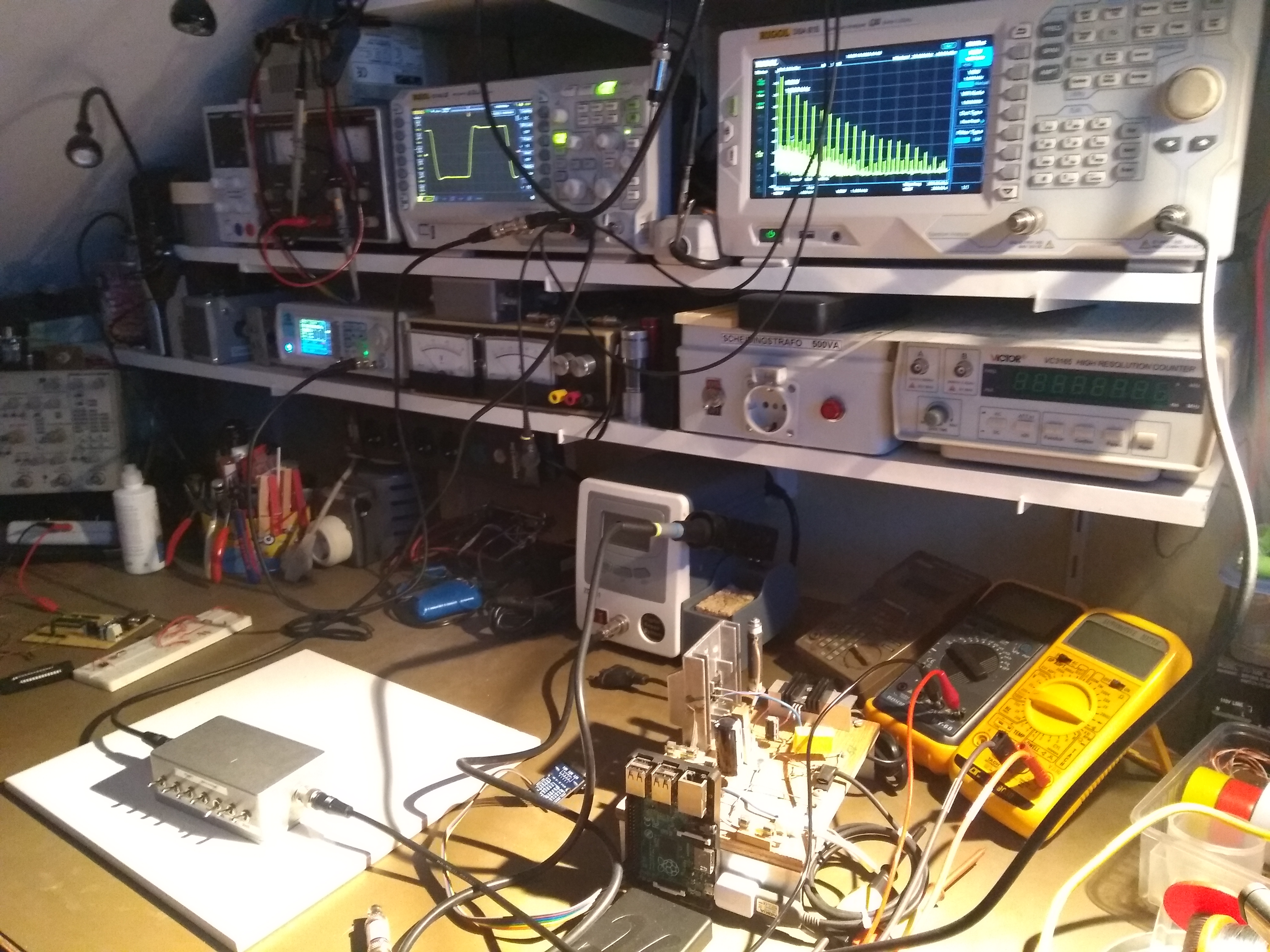

Quick setup for the measurement

Settings on the JDS6600

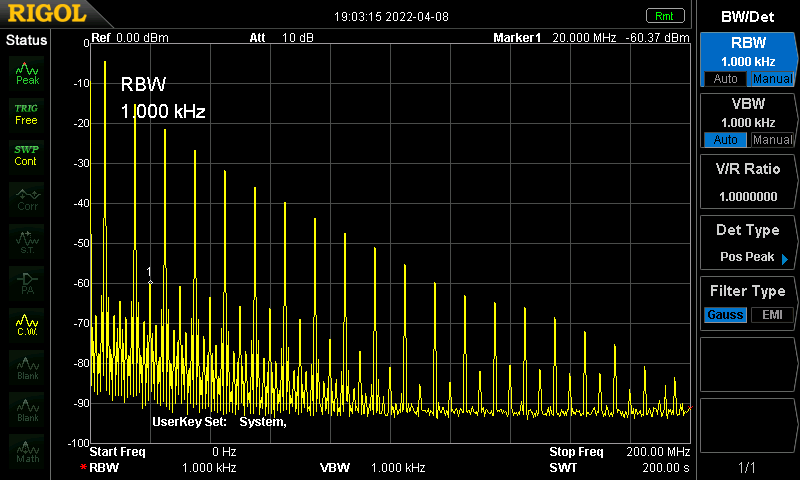

Spectrum measured on the Rigol DSA815

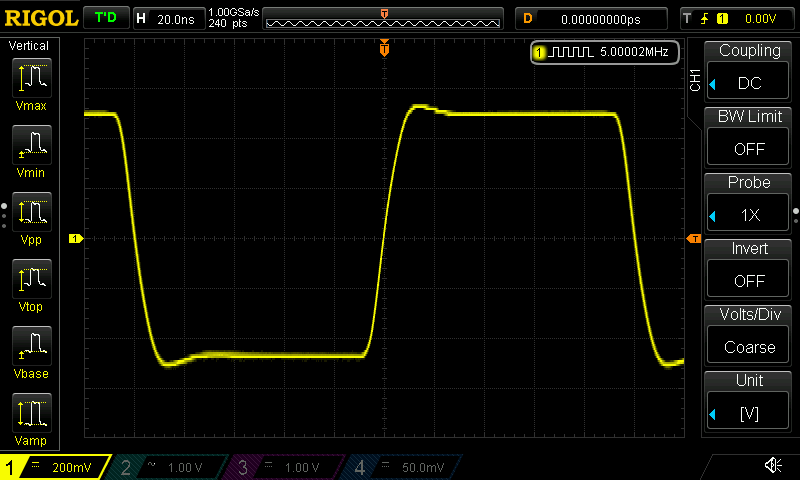

Osciloscope measurement on the Rigol DS1054Z
